Sketching Circle on a Face

We can draw a circle using two methods.

These methods can be activated by selecting the respective button from the Option Icon Circle.

There are two methods to draw a circle.

• Draw a circle with Specifies Center Point and Diameter

• Draw a circle with Defining Three Points

Steps we have to do is:

Make a sketch of the curve on the Face.

Click Sketch on the Form Feature toolbar.

Select the Circle icon.

Insert> Circle

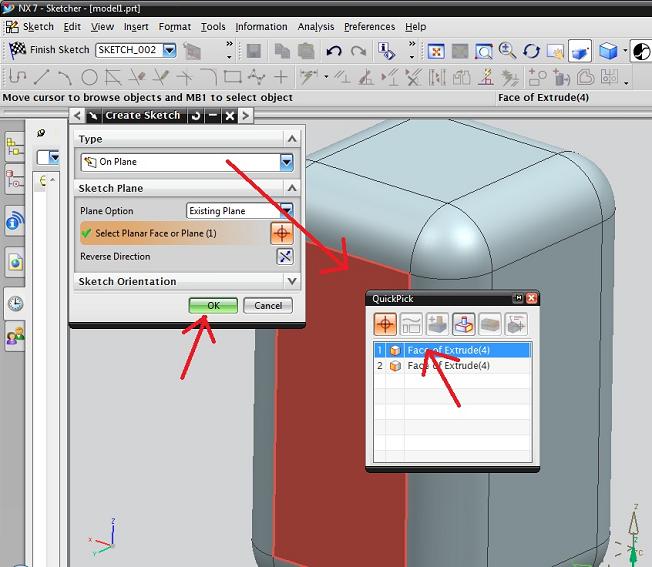

Select the sketch> On Plane> select the face to be in the sketch circle

Click OK.

On the Sketch Constraints toolbar, select Create Inferred Constraints.

Click MB2 to accept the sketch plane. Note that Sketcher orients the view to the sketch and starts the Profile command.

Drag the cursor down and to the left to create an arc.

Press MB2 to exit string mode, and press Ctrl+Q to exit the Sketcher
